SoliBlanket™ X-Grade

Our standard Refractory Ceramic Fiber blanket range consists of 2 types, with a classification temperature of 2300°F and 2600°F. SoliBlanket X-grade is our standard RCF blanket, has a classification temperature of 2300°F , and is recommended for use in temperatures up till 2000°F continuously. Together with the SoliBlanket ZR-grade these two product fill the majority of the applications where Refractory Ceramic Fiber Blankets are still required.

SoliBlanket X-grade is setting a new standard for a classic RCF blanket. Manufactured using the latest spinning technology it is delivering a better performance than any other traditional refractory ceramic fiber blankets. You can feel the difference by just working with the product, but the technology behind is doing much more than that. Better thermal insulation, higher strength and more resiliency when converting to fiber modules.



SoliBlanket X-Grade

Datasheets, Media & Downloads

pdf

SoliBlanket/SoliBulk/SoliSlab/Solibloc X-grade MSDS EN

pdf

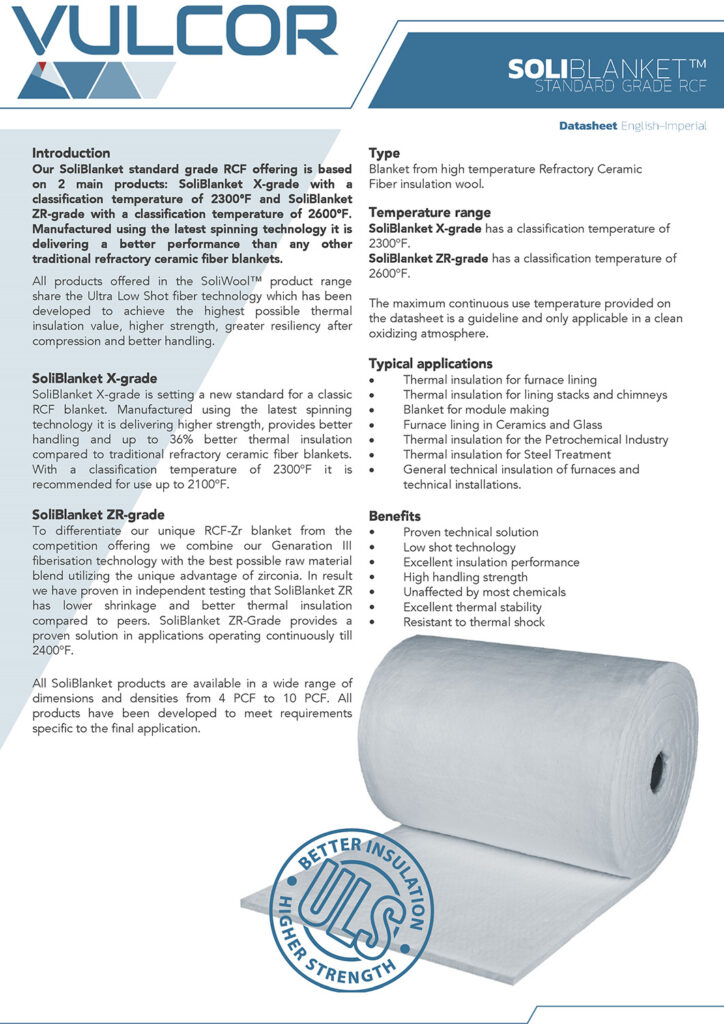

SoliBlanket RCF Datasheet US

Description

We are proud being the first large scale manufacturer of Generation III fibers, a technology also known as Ultra Low Shot (ULS) spinning. Before our SoliBlanket X-grade, low shot fiber technology was destignated for low bio persistence fibers only and refractory ceramic fiber (RCF) did not see much innovation for many years, but with the SoliBlanket X-grade this has changed.

With our production technology break through we are able to bring low shot technology to our Refractory Ceramic Fiber blankets as well. Actually,  SoliBlanket X-grade is one of the products taking most benefit of the Ultra Low Shot fiber technology. As a result,  compared to a Generation I or Generation II technology high temperature fiber, the SoliBlanket X-grade is providing a better thermal insulation, a higher mechanical strength and an improved handling.

Recent testing proved that the tensile strength of our SoliBlanket X-grade, using Generation III technology, is minimum 30 % higher than any of the ‘other brands’. The resiliency after compression, which is particularly important when making (stack or folded) fiber modules, is  best in class. And this is just focussing on the the mechnical aspects of our fiber.

As we believe that reducing energy consumption and minimizing CO2 emissions in the production process will become part of sustainable environmental drivers, thermal insulating properties will become more important. SoliBlanket X-grade, benchmarked against several other standard RCF blankets, resulted in thermal conductivities up to 36 % better than some Generation I products @ 1832°F. Another great benefit of the Ultra Low Shot technology used for manufacturing our SoliBlanket X-grade.

SoliBlanket X-grade is part of the SoliBlanket product range. With a variety of four Refractory Ceramic Fiber (RCF) grades and the famous ‘ULS®’ Low Bio Persistence Fiber grade we are offering one of the most extensive ranges of high temperature fiber blankets in the market today. With our  different chemical compositions we are able to provide a solution to nearly every atmosphere or temperature.

Benefits

  • Proven technical solution
  • Low shot technology
  • Excellent insulation performance
  • High handling strength
  • Unaffected by most chemicals
  • Excellent thermal stability
  • Resistant to thermal shock

Typical applications

  • Thermal insulation for lining stacks and chimneys
  • Blanket for module making
  • Furnace lining in Ceramics and Glass
  • Thermal insulation for Petrochemical Industry
  • Refractory lining for Steel Treatment
  • General technical insulation of furnaces and technical installations.

Type

Blanket from high temperature Refractory Ceramic Fiber insulation wool.

Temperature range

SoliBlanket X-grade has a classification temperature of 2300°F and advised for maximum continuous use at 2000°F.

The maximum continuous use temperature provided on the website is a guideline and only applicable in a clean oxidizing atmosphere.

Product range

SoliBlanket is part of an extensive product range supplied by Vulcor Insulation. Vulcor Insulation is supplying insulation solutions from cryogenic to high temperature applications. All products offered by Vulcor are manufactured in house or sourced from exclusive trusted third party partners.

Technical support

Vulcor Insulation provides specifiers and customers with guidance on all aspects of the materials selection for their application, the installation and compliance with relevant regulations and performance standards.

For additional information about product performance, or to identify the recommended product for your application, please contact the team at Vulcor Insulation.

Availability

All SoliBlanket products from the Standard Grade RCF range are available in densities from 4 to 10 PCF and in a standard thickness range from 1/4 to 2 inch.

SoliBlanket is standard supplied in shrink wrap plastic film, and can be supplied in carton boxes (except 1/4 inch blanket which is only available with 4 rolls per carton box). The blankets in shrink wrap are placed on a heat treated export pallet with 24 rolls per pallet. Please refer to list below for availability of densities and dimensions.

Length (inch) Width (inch) Thickness (inch) 4 PCF 6 PCF 8 PCF 10 PCF
216 24 1/4 O X O
600 24 1/2 O X X X
400 24 3/4 O O O O
300 24 1 X X X X
180 24 1-1/2 X X X
150 24 2 X X X
Standard item X
On request O

Properties

Properties measured Standard Unit SoliBlanket X-grade
Grade RCF
Colour white
Classification temperature °F 2300
Maximum continous use temperature °F 2000
Density PCF 6 8
Tensile strength EN 1094-1 PSI 11.5 14.5
Permanent linear shrinkage EN 1094-7 %
@2200°F < 3
Thermal conductivity ASTM C-201 BTU·in/hr·ft2·°F W/mK
@500°F 0.45 0.42
@1000°F 0.80 0.74
@1500°F 1.42 1.24
@1800°F 1.81 1.56
@2000°F 2.16 1.84
Chemical composition ISO 12677 %
SiO2 53 - 55
AI2O3 44 - 46
ZrO2 -
Fe2O3 < 0,3
Other < 0,3
