SoliBloc™ ULS-Grade

SoliBloc™ modules are unique monolithic fiber modules that incorporate our premium Generation III fiber technology. Our SoliBloc™ ULS® is based on our Low Bio Persistence fiber and has a classification temperature of 2300°F. These fiber modules offer exceptional thermal insulation, high strength, and are suitable for applications with high gas velocities.

Besides SoliBloc™ ULS® we also offer 2 standard grades of Refractory Ceramic Fiber based SoliBloc™ modules, with a classification temperature of 2300°F and 2600°F. SoliBloc™ X-grade is our standard version with a classification temperature of 2300°F , and is recommended for use in temperatures up till 2000°F continuously.

Together with the 2600°F rated RCF based SoliBloc ZR-grade, our 2300°F rated low bio persistence grade SoliBloc ULS-grade and the unique 2750°F rated SoliBloc PRO we are offering one of the most advanced productranges of monolithic fiber modules.

SoliBloc ULS-Grade
pdf

SoliBlanket/SoliBulk/SoliSlab/SoliBloc ULS MSDS EN

pdf

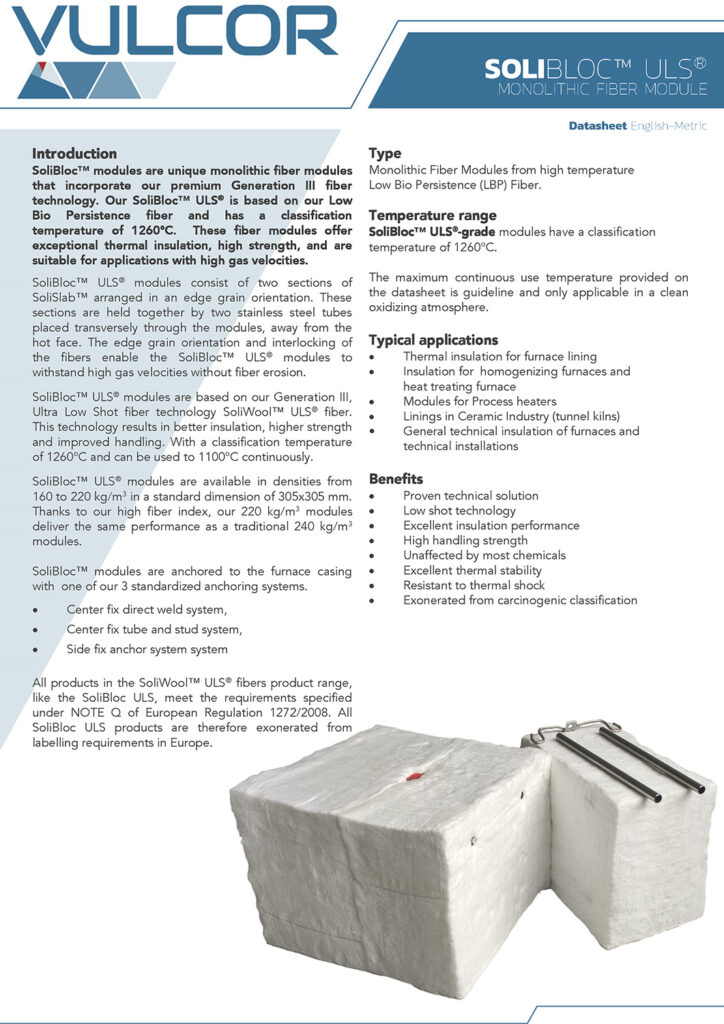

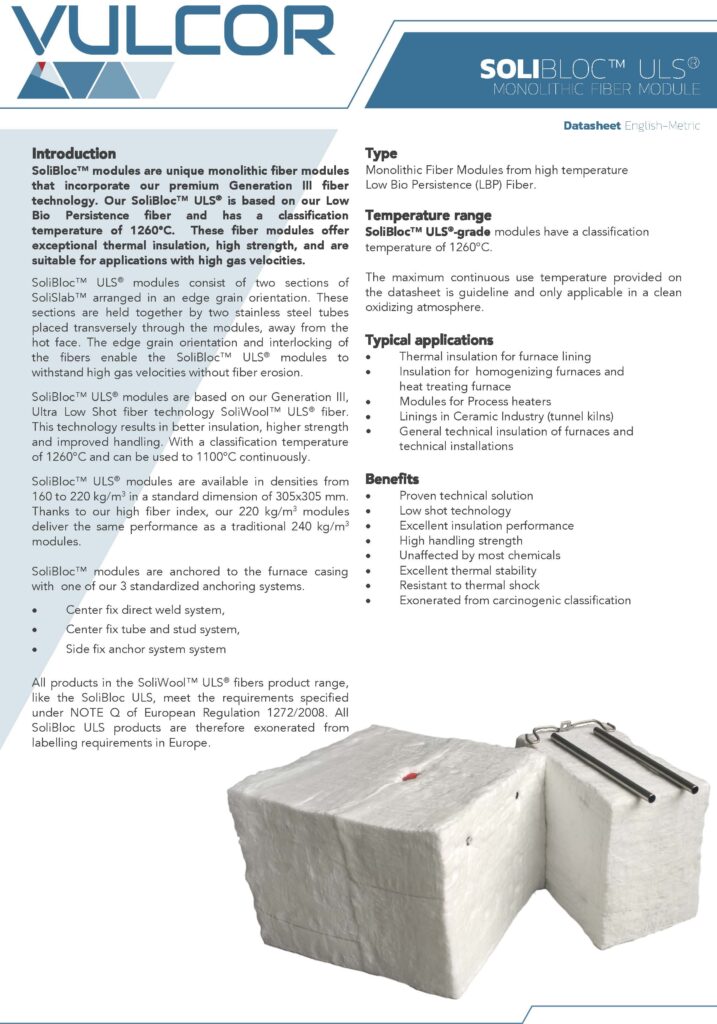

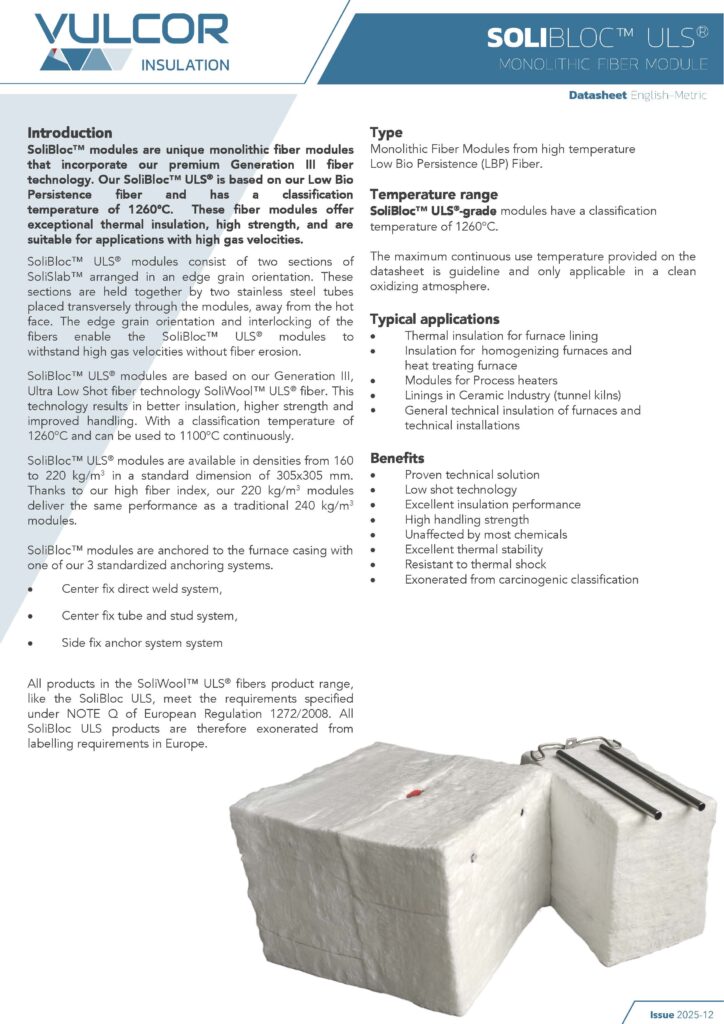

SoliBloc ULS Datasheet US

Description

SoliBloc™ modules are unique monolithic fiber modules that incorporate our premium Generation III fiber technology. Our SoliBloc™ ULS® is based on our Low Bio Persistence fiber and has a classification temperature of 2300°F. These fiber modules offer exceptional thermal insulation, high strength, and are suitable for applications with high gas velocities.

Unlike standard stack or folded modules which are made from compressed blanket strips, SoliBloc™ ULS® modules consist of two sections of SoliSlab™ arranged in an edge grain orientation. These sections are held together by two stainless steel tubes placed transversely through the modules, away from the hot face. The edge grain orientation and interlocking of
the fibers enable the SoliBloc™ ULS® modules to withstand high gas velocities without fiber erosion.

SoliBloc™ ULS® modules are based on our Generation III, Ultra Low Shot fiber technology SoliWool™ ULS® fiber. This technology results in better insulation, higher strength and improved handling. With a classification temperature
of 2300°F and can be used to 2000°F continuously.

SoliBloc™ ULS® modules are available in densities from 10 to 14 PCF in a standard dimension of 12x12 inch. Thanks to our high fiber index, our 14 PCF modules deliver the same performance as a traditional 15 PCF modules.

SoliBloc™ modules are anchored to the furnace casing with one of our 3 standardized anchoring systems.

  • Center fix direct weld system,
  • Center fix tube and stud system,
  • Side fix anchor system system

All offered anchoring systems come with all required items for the fixing system and the hardware is offered in various grades of stainless steel.

SoliBloc™ ULS-grade is part of the SoliBloc monolitic fiber module product range. With a variety of 2 Refractory Ceramic Fiber (RCF) grades, the famous ‘ULS®’ Low Bio Persistence Fiber grade and our latest addition the SoliBloc Pro with a classification temperature of 2750°F, we are offering the most extensive range temperature range of monolitic fiber modules in the market today. With our  different chemical compositions we are able to provide a solution to nearly every atmosphere or temperature.

Benefits

  • Proven technical solution
  • Low shot technology
  • Excellent insulation performance
  • High handling strength
  • Unaffected by most chemicals
  • Excellent thermal stability
  • Resistant to thermal shock
  • Exonerated from carcinogenic classification

Typical applications

  • Thermal insulation for furnace lining
  • Insulation for homogenizing furnaces and heat treating furnace
  • Modules for Process heaters
  • Linings in Ceramic Industry (tunnel kilns and intermittent kilns)
  • General technical insulation of furnaces and technical installations



Type

Monolithic Fiber Modules manufactured from Low Bio Persistence fiber



Temperature range

SoliBloc™ ULS-grade modules have a classification temperature of 2300°F and can be used up till 2000°F continuously.

The maximum continuous use temperature provided on the website is a guideline and only applicable in a clean oxidizing atmosphere.



Product range

SoliBloc™ ULS-grade modules are part of an extensive product range supplied by Vulcor Insulation. Vulcor Insulation is supplying insulation solutions from cryogenic to high temperature applications. All products offered by Vulcor are manufactured in house or sourced from exclusive trusted third party partners.

Technical support

Vulcor Insulation provides specifiers and customers with guidance on all aspects of the materials selection for their application, the installation and compliance with relevant regulations and performance standards.

For additional information about product performance, or to identify the recommended product for your application, please contact the team at Vulcor Insulation.

Avialability

We offer our SoliBloc™ in standard straight 12x12 inch modules and in thicknesses from 4 inches. In standard size the modules are packed in carton boxes of 12-½x12-½x38 inches (holding multiple modules) with 24 boxes per pallet. Please refer to the list below for packaging details of the SoliBloc modules, other sizes are available on request.

For projects we also offer tailor modules to meet specific engineering requirements, such as L-shaped corner modules and other special shapes. Please let us know if you require any further information or have specific engineering needs. We are dedicated to providing high-quality fiber modules that meet your thermal insulation and strength requirements.



Length (inch) Width (inch) Thickness (inch) Pieces (carton) Pieces (pallet)
12 12 4 9 216
12 12 6 6 144
12 12 8 5 120
12 12 10 4 96
12 12 12 3 72

Properties

Properties measured Standard Unit SoliBloc™ ULS-grade
Grade LBP
Colour white
Classification temperature °F 2300
Continuous use temperature °F 2000
Density PCF 10 12 14
Thickness range inch ≥ 4
Permanent linear shrinkage EN1097-7 %
@2200°F < 1,5
Thermal conductivity ASTM C201 BTU·in/hr·ft2·°F
@500°F 0.49 0.47 0.44
@1000°F 0.98 0.83 0.80
@1500°F 1.70 1.48 1.34
@1800°F 2.13 1.87 1.73
@2000°F 2.43 2.19 2.05
Chemical composition, ISO12677 %
SiO2 63-66
CaO 26-33
MgO 3-7
Other < 0,8
