SoliBoard™ ULS®-Grade

With pride we introduce our standard low bio persistence fiber based based SoliBoard™ product range. Manufactured utilizing our  Generation III, Ultra Low Shot, technology these boards are delivering a better performance compared to traditional ceramic fiber or other low bio persistence fiber based boards. SoliBoard™ can be used for a wide range of application in refractory linings or in domestic appliances. With classification temperatures of 2200°F and 2400°F respectively, SoliBoard™ standard bio products can be used for a wide range of application in refractory linings or condensing boilers.

SoliBoard™ ULS® is our general purpose high temperature board manufactured from our 2300°F rated SoliWool™ ULS® fiber and carefully selected fillers. Targeted to deliver high strength and performance in refractory linings, but is also populair for use in domestic boilers.



SoliBoard ULS-Grade

Datasheets, Media & Downloads

pdf

SoliBoard PCW100 HT Datasheet US

png

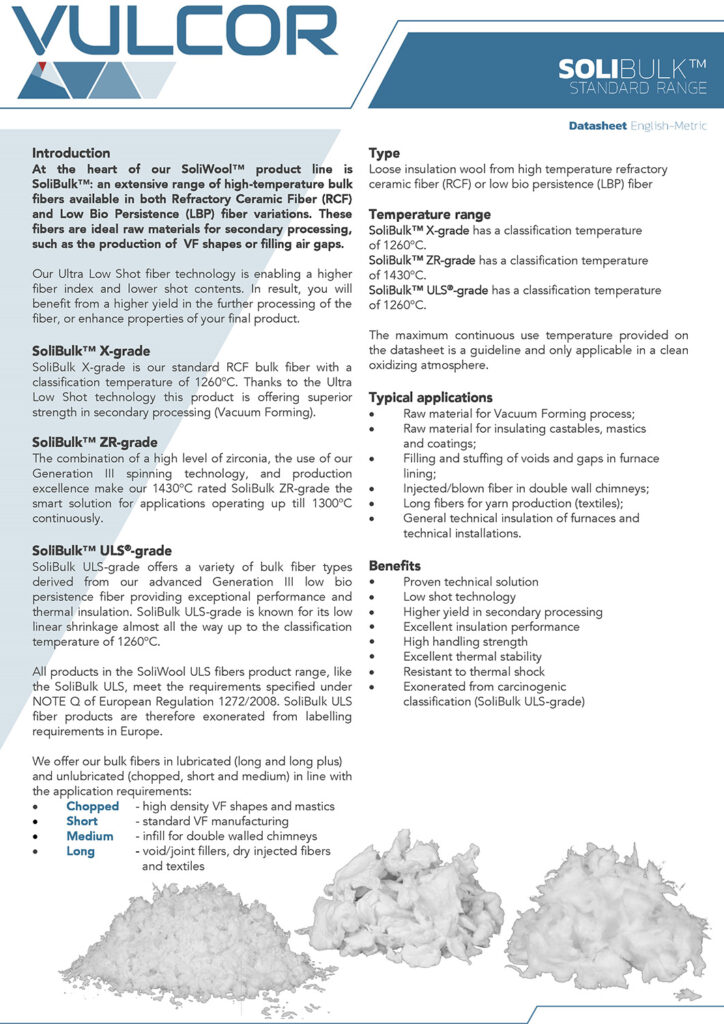

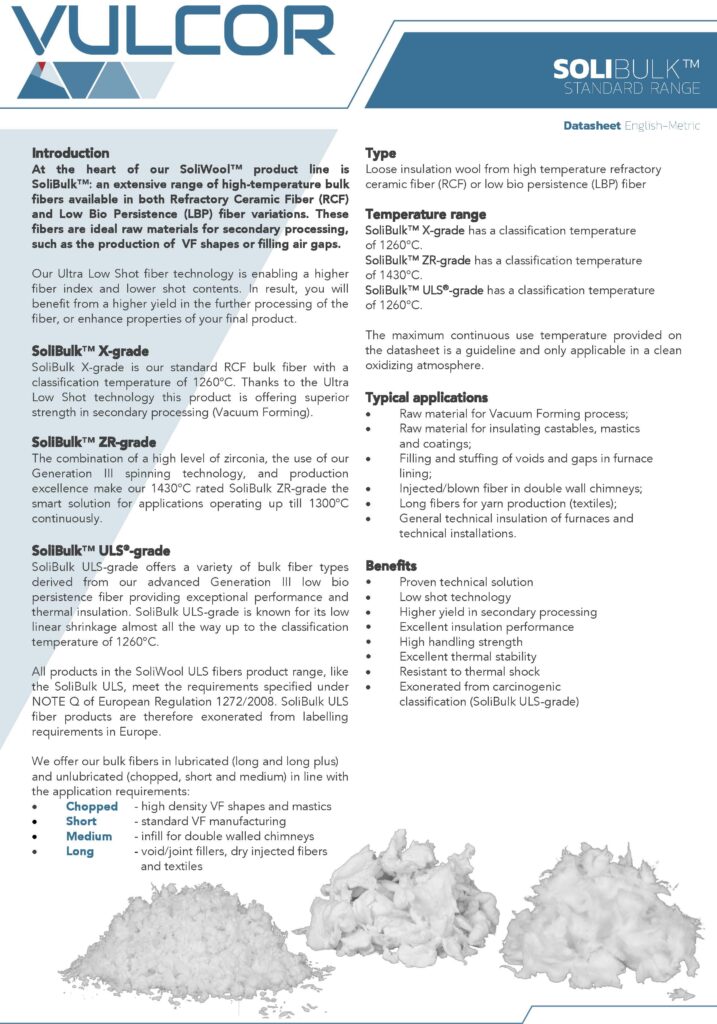

SoliBulk STD Datasheet US

pdf

SoliBlanket/SoliBulk/SoliSlab/SoliBloc ULS MSDS EN

pdf

SoliBlanket/SoliBulk/SoliSlab/SoliBloc ZR and PRO MSDS EN

pdf

SoliBlanket/SoliBulk/SoliSlab/Solibloc X-grade MSDS EN

pdf

SoliBloc PRO Datasheet US

Description

Introducing Vulcor’s SoliBoard range, manufactured on our state-of-the-art production line, a result of years of expertise and engineering excellence. Our manufacturing process sets us apart from the competition, and here’s why:

SoliBoard is produced on our continuous board line, measuring approximately 1200 feet in length and a fixed production width of 47-1/4 inch. This cutting-edge line, established in 2019, incorporates the latest standards and utilizes low-energy consumption drying technology, a unique advantage in our industry. This enables us to deliver exceptional quality while maintaining high output capabilities.

Our highly efficient drying technology reduces energy consumption by 50% compared to conventional forced air drying methods. It empowers us to manufacture uniform, lightweight, low shot, and stable boards up to 4 inch in thickness, consistently meeting the highest standards of quality and performance. In a world where reducing energy consumption and minimizing CO2 emissions is part of sustainable environmental drivers, it is good to realise that we have already taken the first step.

In the SoliBoard product range, SoliBoard™ ULS® is our general purpose high temperature board manufactured from our 2300°F rated SoliWool™ ULS® fiber and carefully selected fillers. Engineered to perform in a wide range of applications up till 2000°F continuously.

SoliBoard ULS, even the name in honoring our Ultra Low Shot spining technology, which is commonly used for the production of our fiber products. SoliBoard is produced with a very tight thickness tolerance and offer unparalleled flatness. As a result the SoliBoard, compared to other types of board, offers better machining characteristics in CNC cutting. With SoliBoard you can easily tailor the board into a precision machined shapes for domestic boilers and heater.

Vulcor provides an extensive range of high-temperature board products, including:

  • Standard boards
  • Inorganic binder boards which give lower LOI% and off-gassing
  • High-strength series with superior green strength and post-firing strength
  • Special series made from mixed fiber chemistries, often utilizing highly temperature-resistant PCW fibers, for the most demanding applications.

All standard board formulations include a small amount of organic binder to enhance cold handling strength, which burns out during the initial firing at approximately 500°F.

Benefits

  • Low shot technology
  • Excellent insulation performance
  • High handling strength
  • Resistant to erosion from high gas velocities
  • Can be used in direct flame contact
  • Low shrinkage
  • Excellent thermal stability
  • Resistant to thermal shock
  • Exonerated of carcinogenic classification under Note Q

Typical applications

  • Thermal insulation for furnace linings
  • High temperature back-up insulation
  • Lining combustion chamber for domestic boilers and heaters
  • General technical insulation of furnaces andtechnical installations

Type

Boards from high temperature Low Bio Persistence insulation wool and selected fillers.

Temperature range

SoliBoard ULS-grade is based on the 2300°F rated SoliWool ULS-grade. As we hold our converted products to a tighter PLC% (shrinkage) criteria the SoliBoard ULS-grade has a classification temperature of 2300°F It is advised for maximum continuous use at 2000°F.

The maximum continuous use temperature provided on the website is a guideline and only applicable in a clean oxidizing atmosphere.

Product range

SoliBoard is part of an extensive product range supplied by Vulcor Insulation. Vulcor Insulation is supplying insulation solutions from cryogenic to high temperature applications. All products offered by Vulcor are manufactured in house or sourced from exclusive trusted 3rd party partners.

Technical support

Vulcor Insulation provides specifiers and customers with guidance on all aspects of the materials selection for their application, the installation and compliance with relevant regulations and performance standards.

For additional information about product performance or to identify the recommended product for your application, please contact the team at Vulcor Insulation.

Availability

SoliBoard ULS-grade is manufactured in a density of 18.5 PCF and in a standard thickness range from 1/4 till 4 inch.

SoliBoard is available in standard dimensions of 47-1/4 x 36 inch, supplied in carton boxes with a height of approximately 5 inch (based on thickness) or in project pack without carton boxes. Please refer to the provided list for packaging details of SoliBoard in the standard carton boxes.



Thickness Per carton (47-1/4x36") Boards per pallet (47-1/4x36")
1/4" 20 280
3/8" 12 168
1/2" 10 140
3/4" 6 90
1" 5 70
1-1/2" 3 42
2" 2 36
3" 1 23
4" 1 18

Properties

Properties measured Standard Unit SoliBoard ULS-grade
Grade LBP
Colour off-white
Classification temperature °F 2200
Continuous use temperature °F 2000
Density PCF 18.5
Module of Rupture EN 993-6
Unfired PSI ≥ 80
Compressive strength (unfired) EN-ISO8895 PSI
@ 5% deformation ≥ 20
@10 % deformation ≥ 25
Loss on ignition wgt% < 8
Permanent linear shrinkage EN 1094-7 %
@2200°F < 2.5
Thermal conductivity ASTM C-201 BTU·in/hr·ft2·°F
@500°F 0.45
@1000°F 0.66
@1500°F 1.05
@1800°F 1.28
@2000°F 1.47
